BAli-Phy architecture and code layout

BAli-Phy architecture

In order to add functionality to BAli-Phy, it is important to understand the BAli-Phy architecture. This architecture is divided into several levels.

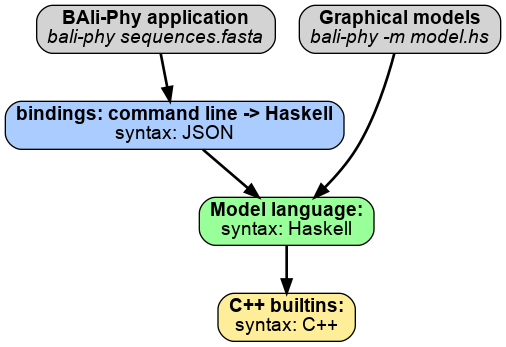

Architecture diagram
Architecture diagram

In BAli-Phy, distributions, functions, and models are all implemented as functions. To add functionality to the standard BAli-Phy interface, you need to add a Haskell function (green), and a binding (blue) that makes that function visible. BAli-Phy does not use a standard Haskell compiler, but instead implements its own Haskell interpreter that has special functionality.

If you are using the generic graphical modeling language, you can use the Haskell function directly, and do not need to add a binding.

In some cases you might want to implement your function in C++ (yellow) and then call it from Haskell.

Source Code

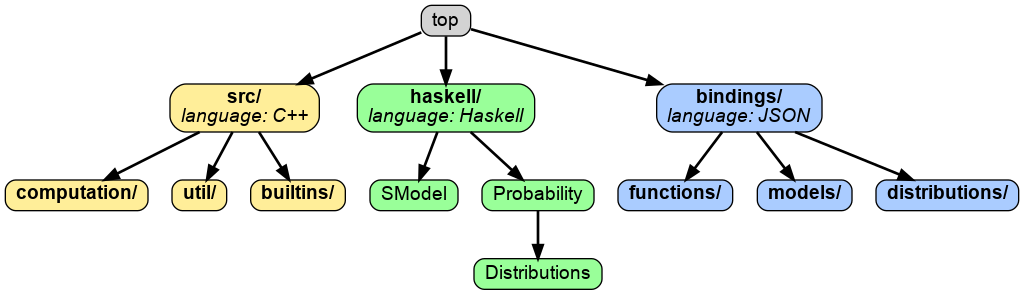

These directories contain code that affects how bali-phy runs: Code layout

modules/
Haskell code
src/
C++17 code
bindings/
JSON definitions of functions for the command-line interface

Documentation and examples

help/
Help files
doc/
Documentation
doc/man/
Markdown files for generating UNIX manual pages
examples/sequences/
Example sequences
examples/models/
Example files for running graphical models.
